Cardinal 215 Digital Weight Indicator

Cardinal's model 215 digital weight indicator with NEMA 4X / IP66 washdown enclosure is versatile and ideal for indoor or outdoor weighing applications with its highly-visible 1" high LCD. It features dual serial ports, multiple print formats, and powers eight load cells.

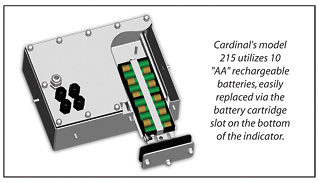

1" High, 6-Digit LCD Display --- 10 “AA” Rechargeable Batteries --- 10 Key Numeric Keypad

215 Features

• Push button tare function

• Gross, tare, net conversion

• Selectable key lockout

• Hi-Resolution mode

• Adjustable filtering

• Gross and Net accumulators

• Dual serial ports

• Remote input lines for Zero, Tare, Gross and Print (1,000 feet maximum)

• Programmable print format using Visual Print or nControl (2 Visual Tickets available)

• Field re-programmable via PC interconnection

• Test feature (performs display and internal tests)

• Auto Shutoff and Sleep modes

• Battery operation (batteries not included)

• Numeric keypad

• Keypad tare function

• Count feature with accumulator

• Time and Date with selectable 12 or 24 hour operation

• Checkweigher

• Three preset weight comparators

• Axle weigher (CWL-40) operation mode

215 Optional Features

• Analog output

• 10/100 Mbps Ethernet TCP/IP

• Checkweigher light bar

• Fiber optic port (glass or plastic)

• Column mounting

• Industrial Ethernet/IP

• Allen-Bradley® interface

• Additional serial port

• Panel mount kit

• External relay box

• Special filtering
