The Guardian Hydraulic Tank / Hopper Scales

Cardinal is now providing tank and hopper scales with the same reliable hydraulic load cell design utilized in the highly-touted Guardian truck scales. Orders are ready to be taken for Guardian tank and hopper scales, ranging from 30,000 to 300,000 lb capacities. Please scroll below for features, pictures, specifications, and more.

When you say hydraulics, you think of water and lightning protection. When you say warranty, Cardinal says … “Lifetime.” Effective immediately, every Guardian hydraulic load cell carries a lot more weight than other industry warranties. The new Cardinal Scale product warranty page denotes LIFETIME on Guardian hydraulic load cells! NO PRO-RATED FORMULAS are involved. If it fails due to water, lightning or craftsmanship, Cardinal will replace it!

The Cardinal Guardian Tank and Hopper Mounted Scale Systems are designed to keep weighing accurately even in the harshest conditions and are the most reliable tank and hopper scales on the market. Constructed in 300 series stainless steel, Cardinal's hydraulic load cells are built to last a lifetime and require no electricity within the scale itself. All of this extreme-duty protection means one thing, big savings over the life of your weighing vessels.

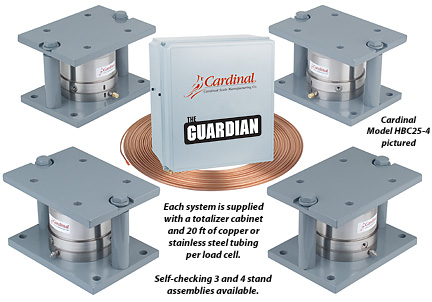

Cardinal’s Guardian hydraulic floor-mounted load cell kits are ideal for extreme-duty environment tank and hopper scales. They provide a superior level of performance in indoor and outdoor process control operations. Each kit comes complete with load cells, tank mounting hardware, copper hydraulic load cell tubing, and a system totalizer box. Each module incorporates self-checking capabilities for thermal expansion and contraction. The HBC50 and HBC75 models feature checkrods for additional stability in larger tank and hoppers

Accuracy classification: 0.05% full scale

TANK/HOPPER KITS - FOUR LEG ASSEMBLIES W/ BALL PIVOT STANDS
MODEL NUMBER	SYSTEM GROSS CAPACITY	NO. OF LOAD CELLS	NO. OF BALL PIVOT STANDS	CELL CAPACITY
PBSSHBC10-4	40,000 lbs	2	2	10,000 lbs
PBSSHBC25-4	100,000 lbs	2	2	25,000 lbs
PBSSHBC50-4	200,000 lbs	2	2	50,000 lbs
PBSSHBC75-4	300,000 lbs	2	2	75,000 lbs

Accuracy classification: 0.25% full scale
Please note: Gross capacity includes the empty weight of the vessel.

GUARDIAN MODEL SST HYDRAULIC LOAD CELLS
MODEL NUMBER	CAPACITY (LB)	VMIN (LB)	CONSTRUCTION	NTEP CC NUMBER	SAFE OVERLOAD	DIAMETER (INCHES)	HEIGHT (INCHES)	NOMINAL OUTPUT
SST10	10,000	0.76	STAINLESS STEEL	None	150% Capacity	4.2	3.4	1800 psig
SST25	25,000	1.9		05-076*		5.9	5.1
SST50	50,000	3.8				7.5	7.8
SST75	75,000	5.7				9	7.8

* - Class IIIL, 10,000 divisions multiple cells

For more info or to request a quote, please email us

Specifications and claims subject to change without notice
